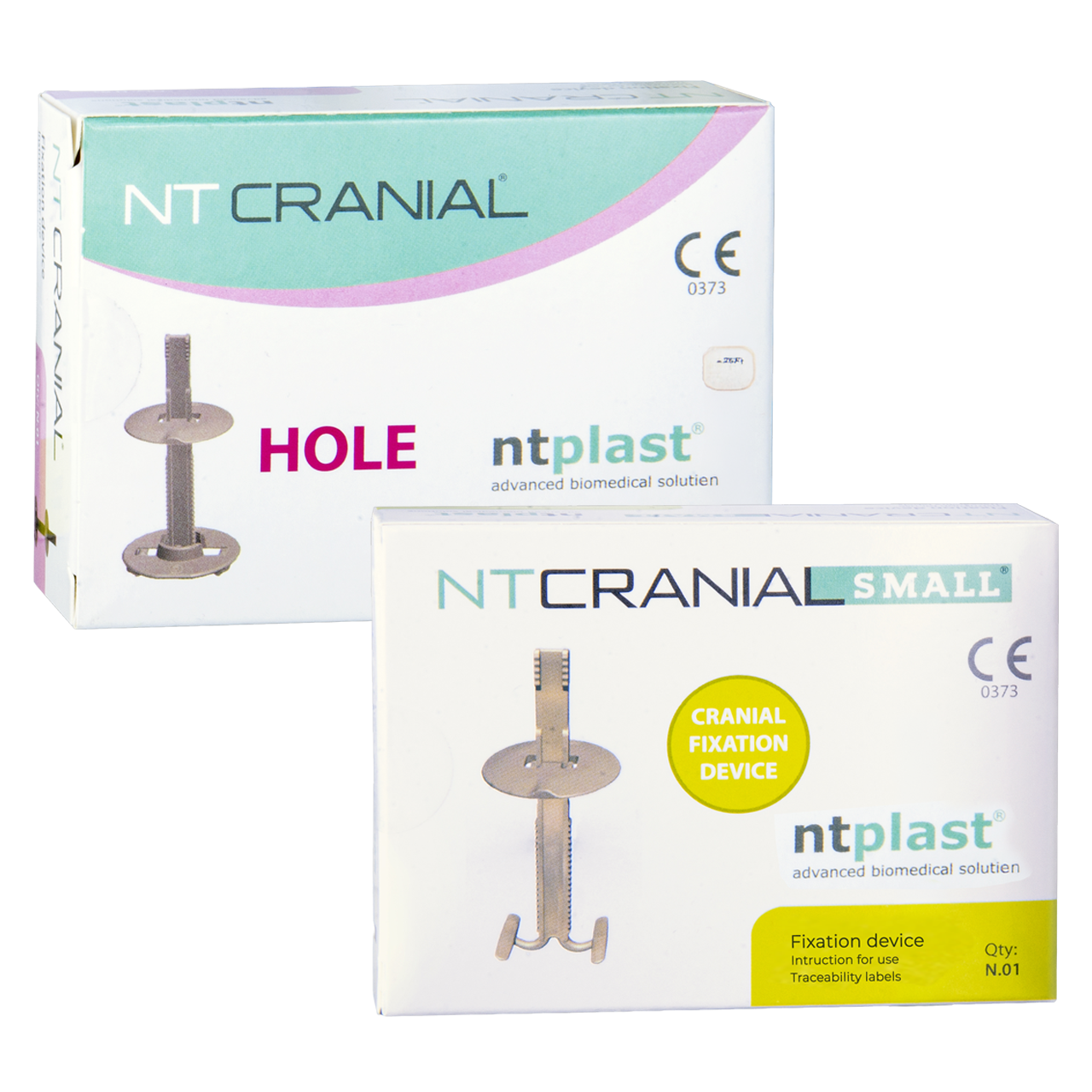

NTCRANIAL Small Cranial Fixation Device packaging

Cranial Fixation Device

NTCRANIAL Cranial Fixation Device

A biocompatible plastic device for stable cranial flap fixation, available in Small and Hole configurations for different craniotomy placement requirements.

Watch Technique Product Details
DeviceCranial Fixation Device
VariantsSmall and Hole
MaterialPEEK OPTIMA polymer
CE Marking0373

Product Overview

NTCRANIAL Cranial Fixation Device for stable cranial flap fixation

NTCRANIAL Cranial Fixation Device is presented in the official brochure as a biocompatible plastic device for the stable fixation of the cranial flap.

The product is available in two dedicated versions for different placement needs: NTCRANIAL Small, to be placed along the craniotomy cut, and NTCRANIAL Hole, to be placed in the holes made by the perforator.

NTCRANIAL brochure

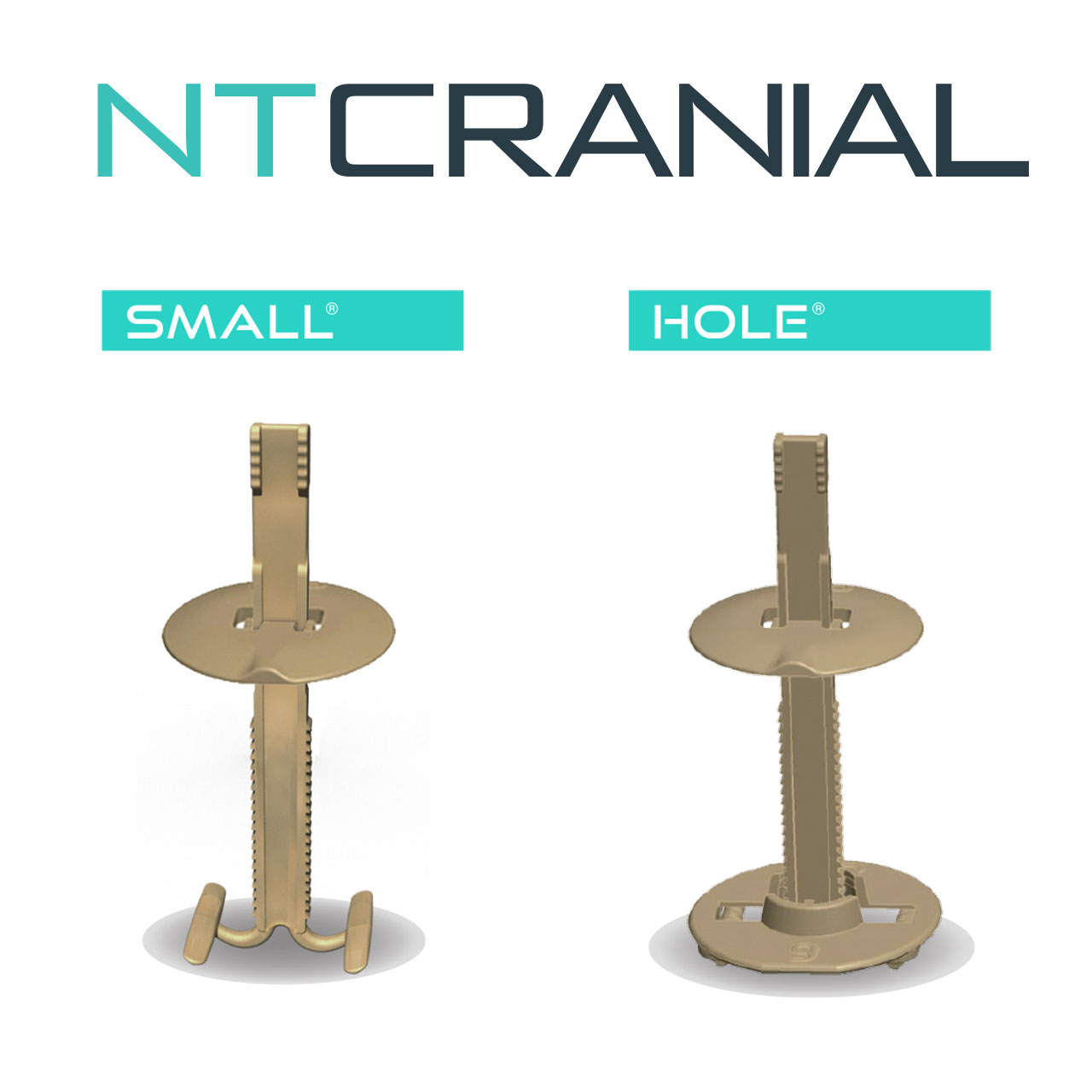

NTCRANIAL - Small and Hole Cranial Fixation Device

Product Details

Two configurations for neurosurgical cranial fixation

The main technical references below summarize the key product information presented in the NTCRANIAL brochure and instructions material.

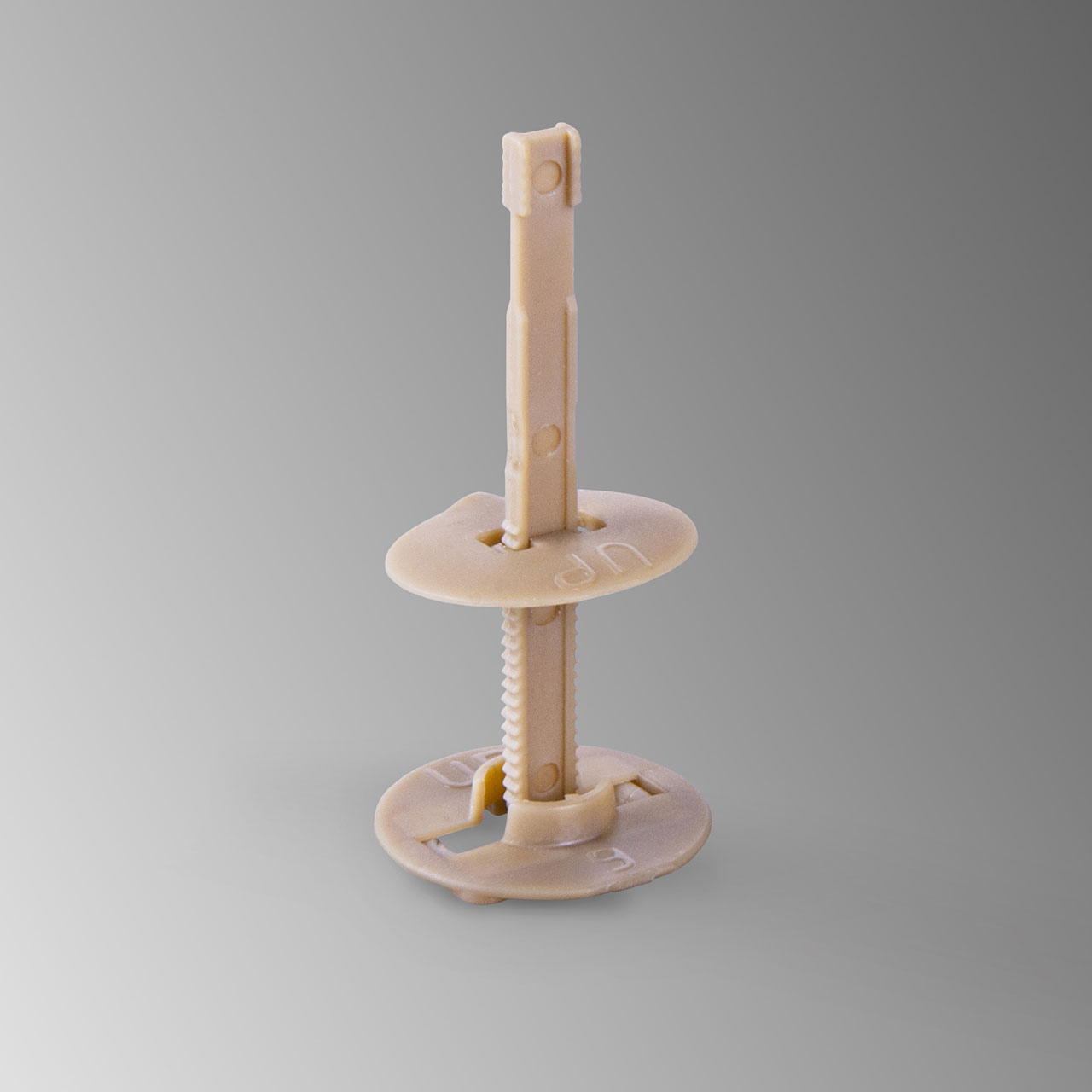

NTCRANIAL Hole Cranial Fixation Device
VersionNTCRANIAL Hole
Reference0101-01H
PlacementTo be placed in the holes made by the perforator
Bone flap thickness2.5 mm to 20 mm
Supply formatPreassembled device packed in double sterilized blister
MaterialBiocompatible PEEK OPTIMA polymer
CE marking shown on brochureCE 0373

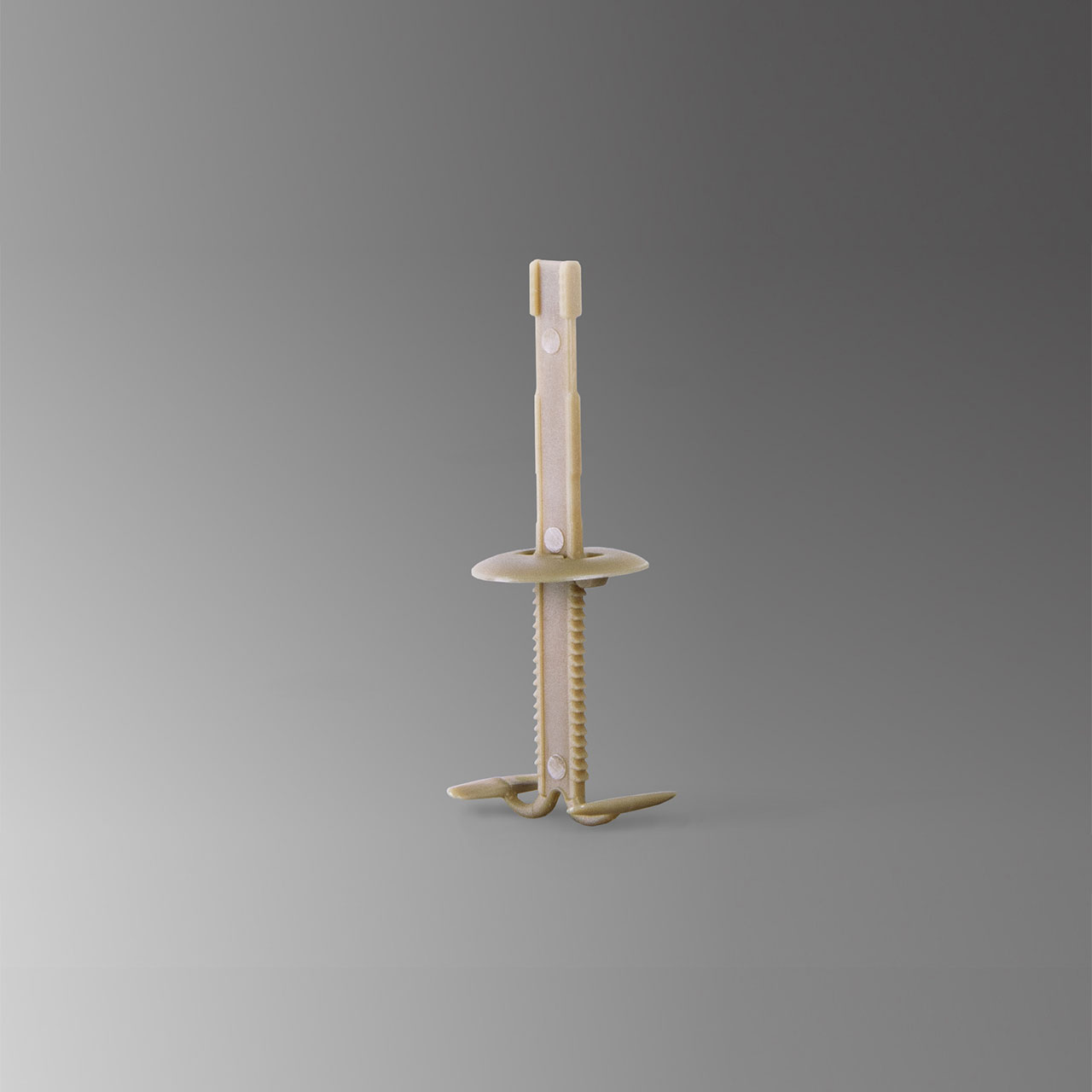

NTCRANIAL Small Cranial Fixation Device
VersionNTCRANIAL Small
Reference0101-01S
PlacementTo be placed along the craniotomy cut
Bone flap thickness0.5 mm to 20 mm
Supply formatPreassembled device packed in double sterilized blister
MaterialBiocompatible PEEK OPTIMA polymer
CE marking shown on brochureCE 0373

Small and Hole

Dedicated placement according to the craniotomy site

The brochure distinguishes the two NTCRANIAL configurations by their intended placement position and the bone flap thickness ranges shown in the product material.

Small

Along the craniotomy cut

NTCRANIAL Small is indicated in the brochure as the device to be placed along the craniotomy cut.

Hole

In perforator holes

NTCRANIAL Hole is indicated as the device to be placed in the holes made by the perforator.

0.5-20 mm

Small thickness range

The brochure reports suitability for bone flaps with thickness between 0.5 mm and 20 mm.

2.5-20 mm

Hole thickness range

The brochure reports suitability for bone flaps with thickness between 2.5 mm and 20 mm.

Surgical Workflow

From craniotomy placement to final locking

The sequence summarizes the surgical technique described in the NTCRANIAL brochure, from device placement to the removal of the exceeding tensor portions.

  1. Choose the configurationSelect NTCRANIAL Small for placement along the craniotomy cut or NTCRANIAL Hole for the holes made by the perforator.
  2. Place the devicesPosition the selected devices along the craniotomy cut or in the prepared perforator holes.
  3. Reposition the cranial flapAfter inserting all devices, place the cranial flap back in the craniotomy site.

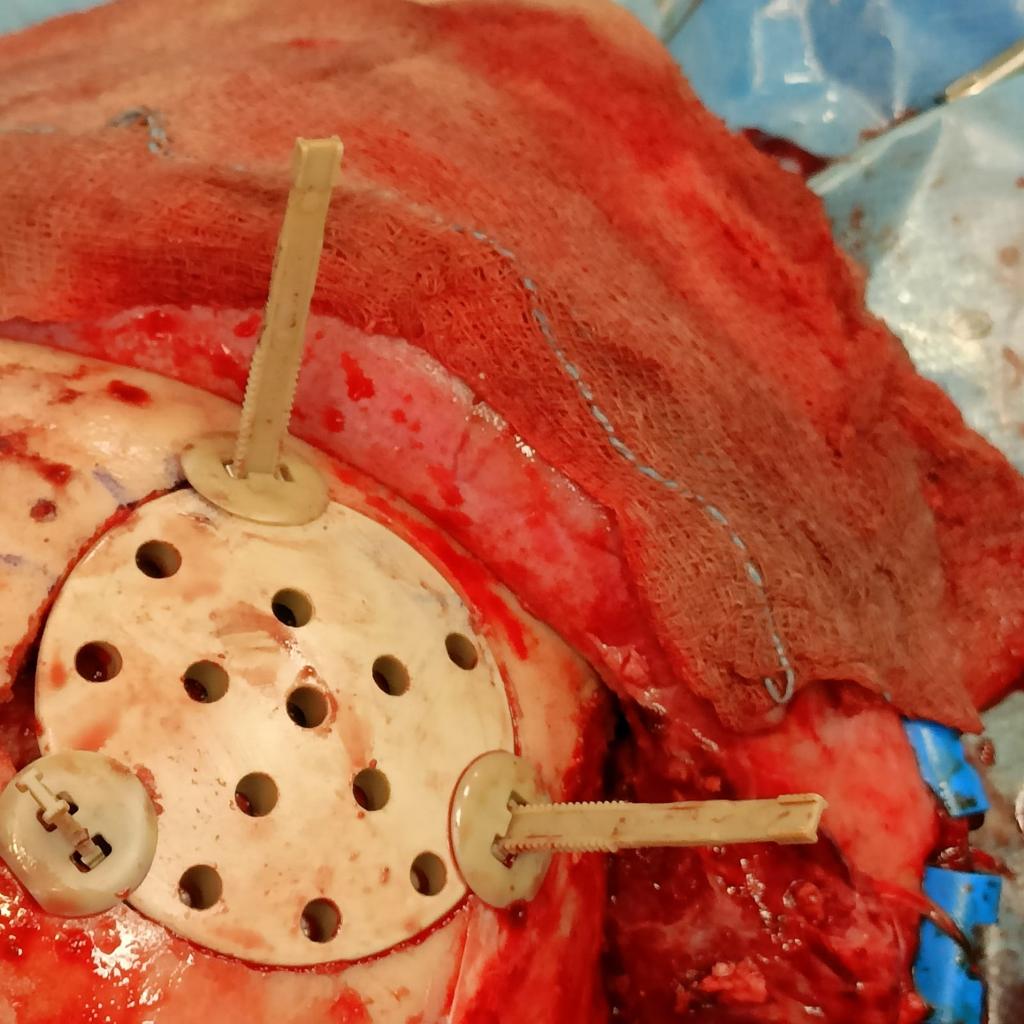

  4. Lock the devicePush downward the plate in order to lock the device as shown in the brochure sequence.
  5. Remove exceeding partsRemove the exceeding parts of the tensor using the NTCRANIAL Cutter.
  6. Review the craniotomy siteThe brochure presents application in pterional and suboccipital craniotomies, with Small used where very reduced bone thickness is required.

Operating Technique Video

Visual guidance for NTCRANIAL Small and Hole placement logic

NTCRANIAL is available in two versions: Small for placement along the craniotomy cut, and Hole for placement in the holes made by the perforator. The operating technique video provides a practical visual reference for the cranial flap fixation sequence, with the available video material focused on NTCRANIAL Small.

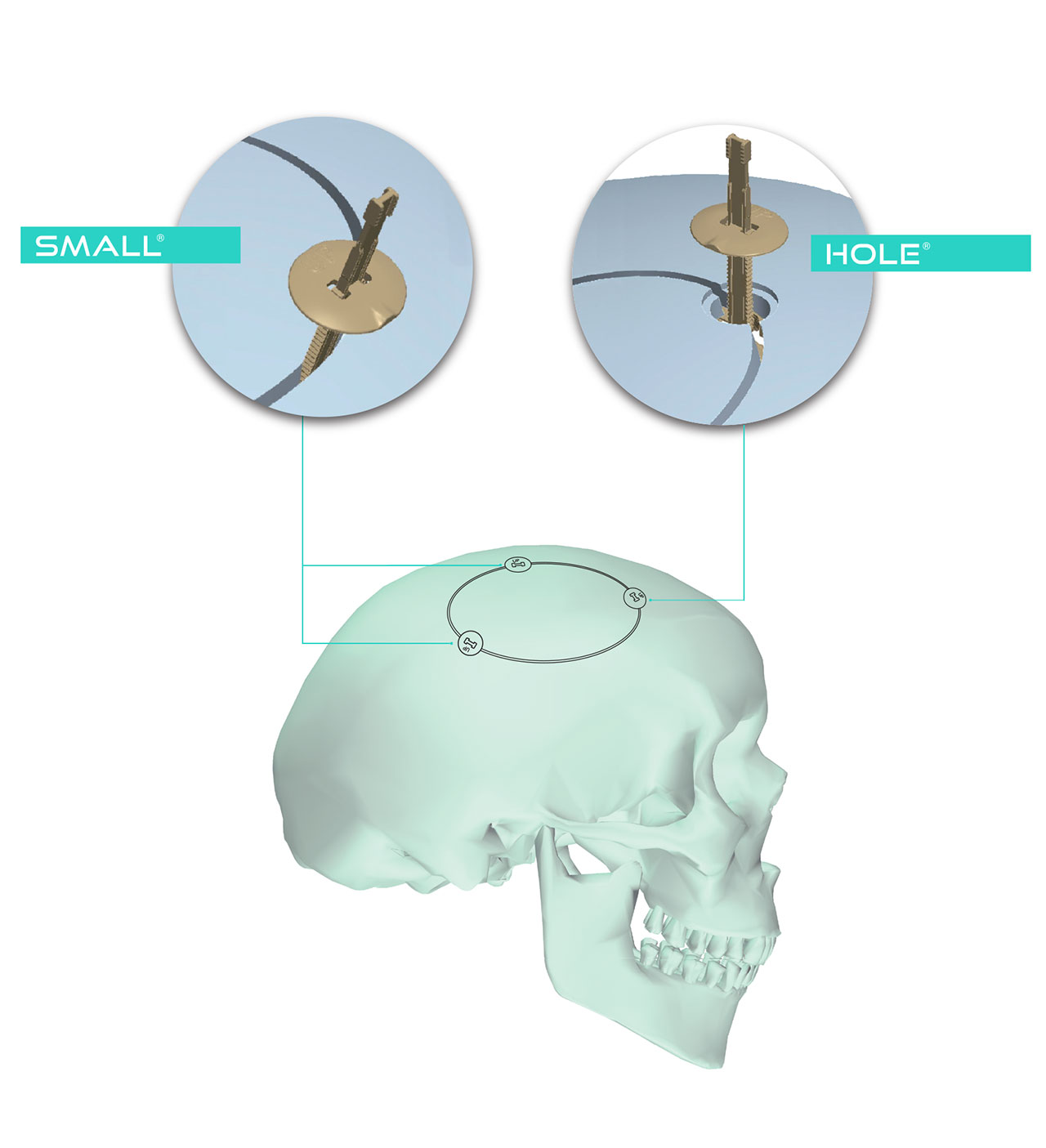

Craniotomy sites for NTCRANIAL devices SMALL and HOLE

Application Areas

Designed for pterional and suboccipital craniotomies

The NTCRANIAL brochure highlights use in pterional and suboccipital craniotomies, with particular suitability connected to the possibility of working with very reduced bone thickness.

Preassembled formatThe device is supplied preassembled and packed in double sterilized blister.
Clear placement logicSmall is positioned along the craniotomy cut, while Hole is positioned in perforator holes.
PEEK OPTIMA polymerThe brochure specifies a biocompatible polymer that does not interfere with CT and MRI scan execution.

Resource Area

NTCRANIAL Cranial Fixation Device documents for specialists and partners

Access the available NTCRANIAL product documents, including the official brochure, instructions leaflets and certification document for professional consultation.

NTCRANIAL brochure NTCRANIAL Small leaflet NTCRANIAL Hole leaflet NTCRANIAL Certification
